DREAM#

[1]:

import scipp as sc
import tof

import scippnexus as snx
from ess.reduce.unwrap import GenericUnwrapWorkflow
from ess.reduce.nexus.types import *
from ess.reduce.unwrap.types import *
from ess.reduce.unwrap.lut import LtotalRange, ChopperFrameSequence

source = tof.Source(facility="ess", neutrons=1_000_000, pulses=2)

High-flux mode#

Chopper parameters#

[2]:

choppers = {
    "psc1": {
        "frequency": {"value": 210.0, "unit": "Hz"},
        "open": {
            "value": [-1.23, 70.49, 84.765, 113.565, 170.29, 271.635, 286.035, 301.17],
            "unit": "deg",
        },
        "close": {
            "value": [1.23, 73.51, 88.035, 116.835, 175.31, 275.565, 289.965, 303.63],
            "unit": "deg",
        },
        "distance": {"value": 6.145, "unit": "m"},
        "phase": {"value": -155.0, "unit": "deg"},
        "type": "chopper",
        "direction": "anticlockwise",
        "name": "psc1",
    },
    "psc2": {
        "frequency": {"value": 196.0, "unit": "Hz"},
        "open": {
            "value": [-1.23, 27.0, 55.8, 142.385, 156.765, 214.115, 257.23, 315.49],
            "unit": "deg",
        },
        "close": {
            "value": [1.23, 30.6, 59.4, 145.615, 160.035, 217.885, 261.17, 318.11],
            "unit": "deg",
        },
        "distance": {"value": 6.155, "unit": "m"},
        "phase": {"value": 100.5, "unit": "deg"},
        "type": "chopper",
        "direction": "clockwise",
        "name": "psc2",
    },
    "oc": {
        "frequency": {"value": 14.0, "unit": "Hz"},
        "open": {"value": [-13.8], "unit": "deg"},
        "close": {"value": [13.8], "unit": "deg"},
        "distance": {"value": 6.174, "unit": "m"},
        "phase": {"value": 27.0, "unit": "deg"},
        "type": "chopper",
        "direction": "anticlockwise",
        "name": "oc",
    },
    "bcc": {
        "frequency": {"value": 112.0, "unit": "Hz"},
        "open": {"value": [-36.875, 143.125], "unit": "deg"},
        "close": {"value": [36.875, 216.875], "unit": "deg"},
        "distance": {"value": 9.78, "unit": "m"},
        "phase": {"value": 20.0, "unit": "deg"},
        "type": "chopper",
        "direction": "anticlockwise",
        "name": "bcc",
    },
    "t0": {
        "frequency": {"value": 28.0, "unit": "Hz"},
        "open": {"value": [-157.45], "unit": "deg"},
        "close": {"value": [157.45], "unit": "deg"},
        "distance": {"value": 13.05, "unit": "m"},
        "phase": {"value": 90.0, "unit": "deg"},
        "type": "chopper",
        "direction": "anticlockwise",
        "name": "t0",
    },
}

[3]:

dream_choppers = {}
for key, ch in choppers.items():
    dream_choppers[key] = tof.Chopper.from_json(name=key, params=ch).to_diskchopper()

for key, ch in dream_choppers.items():
    print(key)
    display(ch)

psc1

DiskChopper

(cutout: 8)

axle_position
scipp
Variable
()
vector3
m
[0. 0. 6.145]
frequency
scipp
Variable
()
float64
Hz
210.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
-155.0
slit_begin
scipp
Variable
(cutout: 8)
float64
deg
-1.23, 70.49, ..., 286.035, 301.170
slit_end
scipp
Variable
(cutout: 8)
float64
deg
1.23, 73.51, ..., 289.965, 303.630
slit_height
NoneType
()
None
radius
NoneType
()
None

psc2

DiskChopper

(cutout: 8)

axle_position
scipp
Variable
()
vector3
m
[0. 0. 6.155]
frequency
scipp
Variable
()
float64
Hz
-196.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
-100.5
slit_begin
scipp
Variable
(cutout: 8)
float64
deg
-1.23, 27.0, ..., 257.230, 315.490
slit_end
scipp
Variable
(cutout: 8)
float64
deg
1.23, 30.6, ..., 261.170, 318.110
slit_height
NoneType
()
None
radius
NoneType
()
None

oc

DiskChopper

(cutout: 1)

axle_position
scipp
Variable
()
vector3
m
[0. 0. 6.174]
frequency
scipp
Variable
()
float64
Hz
14.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
27.0
slit_begin
scipp
Variable
(cutout: 1)
float64
deg
-13.8
slit_end
scipp
Variable
(cutout: 1)
float64
deg
13.8
slit_height
NoneType
()
None
radius
NoneType
()
None

bcc

DiskChopper

(cutout: 2)

axle_position
scipp
Variable
()
vector3
m
[0. 0. 9.78]
frequency
scipp
Variable
()
float64
Hz
112.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
20.0
slit_begin
scipp
Variable
(cutout: 2)
float64
deg
-36.875, 143.125
slit_end
scipp
Variable
(cutout: 2)
float64
deg
36.875, 216.875
slit_height
NoneType
()
None
radius
NoneType
()
None

t0

DiskChopper

(cutout: 1)

axle_position
scipp
Variable
()
vector3
m
[ 0. 0. 13.05]
frequency
scipp
Variable
()
float64
Hz
28.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
90.0
slit_begin
scipp
Variable
(cutout: 1)
float64
deg
-157.450
slit_end
scipp
Variable
(cutout: 1)
float64
deg
157.450
slit_height
NoneType
()
None
radius
NoneType
()
None

Tof model#

[4]:

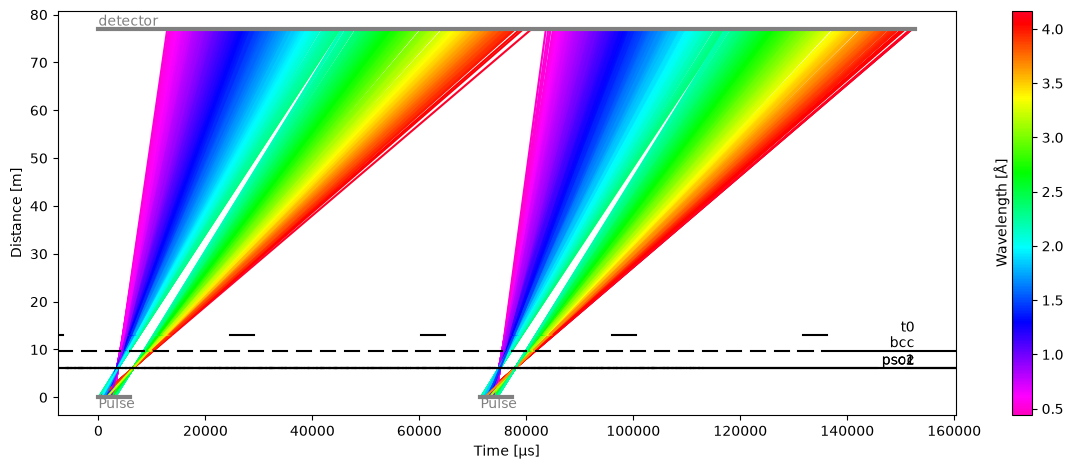

source = tof.Source(facility="ess", neutrons=1_000_000, pulses=2)
source_position = sc.vector([0, 0, 0], unit="m")
detector = tof.Detector(distance=sc.scalar(77.0, unit="m"), name="detector")

params = [
    tof.Chopper.from_diskchopper(ch, name=key) for key, ch in dream_choppers.items()
] + [detector]

model = tof.Model(source=source, components=params)
res = model.run()
res.plot()

[4]:

Plot(ax=<Axes: xlabel='Time [μs]', ylabel='Distance [m]'>, fig=<Figure size 1200x480 with 2 Axes>)

[5]:

res["detector"].plot()

[5]:

Wavelength lookup table#

[6]:

wf = GenericUnwrapWorkflow(
    run_types=[SampleRun], monitor_types=[], wavelength_from="analytical"
)

wf[DiskChoppers[SampleRun]] = dream_choppers
wf[LtotalRange[SampleRun, snx.NXdetector]] = sc.scalar(5, unit="m"), detector.distance
wf[Position[snx.NXsource, SampleRun]] = source_position

table = wf.compute(LookupTable[SampleRun, snx.NXdetector])
table.plot() + table.array['distance', -1].plot(errorbars='band')

[6]:

[7]:

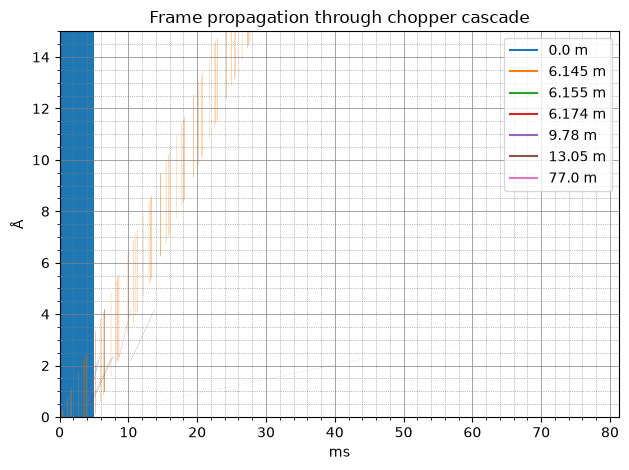

frames = wf.compute(ChopperFrameSequence[SampleRun])
at_sample = frames.propagate_to(detector.distance)
at_sample.draw()

[7]:

(<Figure size 640x480 with 1 Axes>,
 <Axes: title={'center': 'Frame propagation through chopper cascade'}, xlabel='ms', ylabel='Å'>)

High-resolution mode#

Chopper parameters#

[8]:

choppers = {
    "psc1": {
        "frequency": {"value": 210.0, "unit": "Hz"},
        "open": {
            "value": [-1.23, 70.49, 84.765, 113.565, 170.29, 271.635, 286.035, 301.17],
            "unit": "deg",
        },
        "close": {
            "value": [1.23, 73.51, 88.035, 116.835, 175.31, 275.565, 289.965, 303.63],
            "unit": "deg",
        },
        "distance": {"value": 6.145, "unit": "m"},
        "phase": {"value": -155.0, "unit": "deg"},
        "type": "chopper",
        "direction": "anticlockwise",
        "name": "psc1",
    },
    "psc2": {
        "frequency": {"value": 196.0, "unit": "Hz"},
        "open": {
            "value": [-1.23, 27.0, 55.8, 142.385, 156.765, 214.115, 257.23, 315.49],
            "unit": "deg",
        },
        "close": {
            "value": [1.23, 30.6, 59.4, 145.615, 160.035, 217.885, 261.17, 318.11],
            "unit": "deg",
        },
        "distance": {"value": 6.155, "unit": "m"},
        "phase": {"value": 100.5, "unit": "deg"},
        "type": "chopper",
        "direction": "clockwise",
        "name": "psc2",
    },
    "oc": {
        "frequency": {"value": 14.0, "unit": "Hz"},
        "open": {"value": [-13.8], "unit": "deg"},
        "close": {"value": [13.8], "unit": "deg"},
        "distance": {"value": 6.174, "unit": "m"},
        "phase": {"value": 27.0, "unit": "deg"},
        "type": "chopper",
        "direction": "anticlockwise",
        "name": "oc",
    },
    "bcc": {
        "frequency": {"value": 112.0, "unit": "Hz"},
        "open": {"value": [-36.875, 143.125], "unit": "deg"},
        "close": {"value": [36.875, 216.875], "unit": "deg"},
        "distance": {"value": 9.78, "unit": "m"},
        "phase": {"value": 20.0, "unit": "deg"},
        "type": "chopper",
        "direction": "anticlockwise",
        "name": "bcc",
    },
    "t0": {
        "frequency": {"value": 28.0, "unit": "Hz"},
        "open": {"value": [-157.45], "unit": "deg"},
        "close": {"value": [157.45], "unit": "deg"},
        "distance": {"value": 13.05, "unit": "m"},
        "phase": {"value": 90.0, "unit": "deg"},
        "type": "chopper",
        "direction": "anticlockwise",
        "name": "t0",
    },
}

[9]:

dream_choppers = {}
for key, ch in choppers.items():
    dream_choppers[key] = tof.Chopper.from_json(name=key, params=ch).to_diskchopper()

for key, ch in dream_choppers.items():
    print(key)
    display(ch)

psc1

DiskChopper

(cutout: 8)

axle_position
scipp
Variable
()
vector3
m
[0. 0. 6.145]
frequency
scipp
Variable
()
float64
Hz
210.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
-155.0
slit_begin
scipp
Variable
(cutout: 8)
float64
deg
-1.23, 70.49, ..., 286.035, 301.170
slit_end
scipp
Variable
(cutout: 8)
float64
deg
1.23, 73.51, ..., 289.965, 303.630
slit_height
NoneType
()
None
radius
NoneType
()
None

psc2

DiskChopper

(cutout: 8)

axle_position
scipp
Variable
()
vector3
m
[0. 0. 6.155]
frequency
scipp
Variable
()
float64
Hz
-196.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
-100.5
slit_begin
scipp
Variable
(cutout: 8)
float64
deg
-1.23, 27.0, ..., 257.230, 315.490
slit_end
scipp
Variable
(cutout: 8)
float64
deg
1.23, 30.6, ..., 261.170, 318.110
slit_height
NoneType
()
None
radius
NoneType
()
None

oc

DiskChopper

(cutout: 1)

axle_position
scipp
Variable
()
vector3
m
[0. 0. 6.174]
frequency
scipp
Variable
()
float64
Hz
14.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
27.0
slit_begin
scipp
Variable
(cutout: 1)
float64
deg
-13.8
slit_end
scipp
Variable
(cutout: 1)
float64
deg
13.8
slit_height
NoneType
()
None
radius
NoneType
()
None

bcc

DiskChopper

(cutout: 2)

axle_position
scipp
Variable
()
vector3
m
[0. 0. 9.78]
frequency
scipp
Variable
()
float64
Hz
112.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
20.0
slit_begin
scipp
Variable
(cutout: 2)
float64
deg
-36.875, 143.125
slit_end
scipp
Variable
(cutout: 2)
float64
deg
36.875, 216.875
slit_height
NoneType
()
None
radius
NoneType
()
None

t0

DiskChopper

(cutout: 1)

axle_position
scipp
Variable
()
vector3
m
[ 0. 0. 13.05]
frequency
scipp
Variable
()
float64
Hz
28.0
beam_position
scipp
Variable
()
float64
deg
0.0
phase
scipp
Variable
()
float64
deg
90.0
slit_begin
scipp
Variable
(cutout: 1)
float64
deg
-157.450
slit_end
scipp
Variable
(cutout: 1)
float64
deg
157.450
slit_height
NoneType
()
None
radius
NoneType
()
None

Tof model#

[10]:

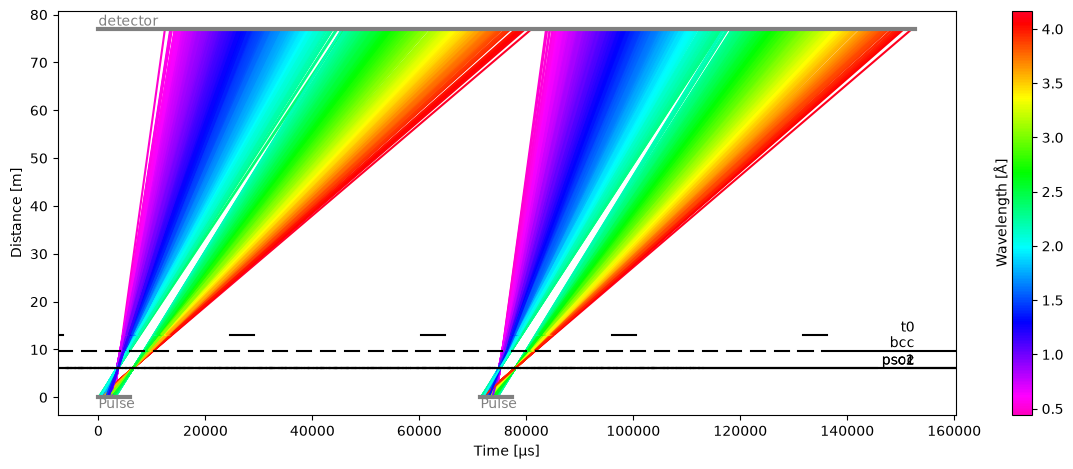

params = [
    tof.Chopper.from_diskchopper(ch, name=key) for key, ch in dream_choppers.items()
] + [detector]

model = tof.Model(source=source, components=params)
res = model.run()
res.plot()

[10]:

Plot(ax=<Axes: xlabel='Time [μs]', ylabel='Distance [m]'>, fig=<Figure size 1200x480 with 2 Axes>)

[11]:

res["detector"].plot()

[11]:

Wavelength lookup table#

[12]:

wf = GenericUnwrapWorkflow(
    run_types=[SampleRun], monitor_types=[], wavelength_from="analytical"
)

wf[DiskChoppers[SampleRun]] = dream_choppers
wf[LtotalRange[SampleRun, snx.NXdetector]] = sc.scalar(5, unit="m"), detector.distance
wf[Position[snx.NXsource, SampleRun]] = source_position

table = wf.compute(LookupTable[SampleRun, snx.NXdetector])
table.plot() + table.array['distance', -1].plot(errorbars='band')

[12]:

[13]:

frames = wf.compute(ChopperFrameSequence[SampleRun])
at_sample = frames.propagate_to(detector.distance)
at_sample.draw()

[13]:

(<Figure size 640x480 with 1 Axes>,
 <Axes: title={'center': 'Frame propagation through chopper cascade'}, xlabel='ms', ylabel='Å'>)
